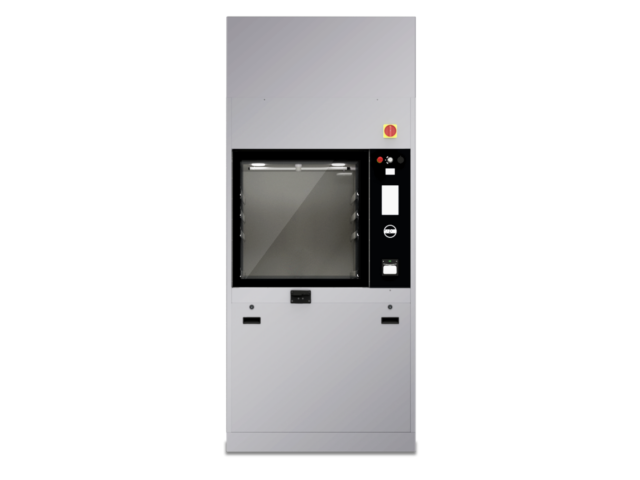

The AWD655-15A-SC-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a automatic sliding double-tempered glass door, plus an integrated steam boiler that cuts energy costs and element wear. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Touch control (8 backlit buttons + 7-inch touchscreen) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
1 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Integrated boilers
1

Weight
480 kg

Dimensions (W×D×H)
W 1000 x D 860 x H 2300 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15A-SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

The AWD655-15A-2SC-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a automatic sliding double-tempered glass door, plus twin integrated boilers (deionised water and hot water). A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Touch control (8 backlit buttons + 7-inch touchscreen) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
1 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Integrated boilers
2

Weight
500 kg

Dimensions (W×D×H)
W 1000 x D 860 x H 2300 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15A-2SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

The AWD655-15A-3SC-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a automatic sliding double-tempered glass door, plus three integrated boilers for hot water, deionised water and steam. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Touch control (8 backlit buttons + 7-inch touchscreen) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
1 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Integrated boilers
3

Weight
520 kg

Dimensions (W×D×H)
W 1000 x D 860 x H 2300 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15A-3SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

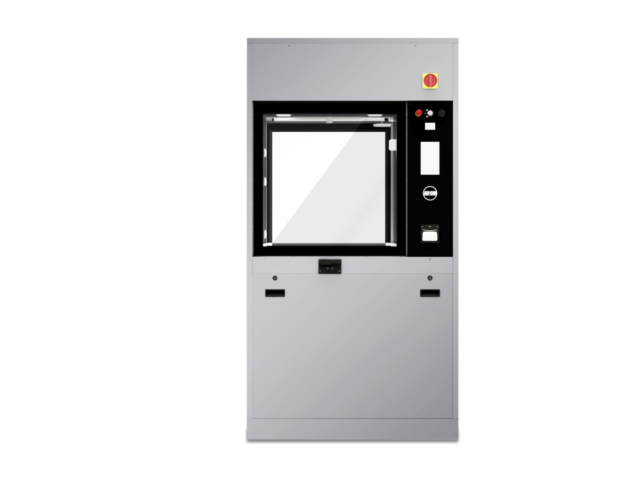

The AWD655-15AD-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a pass-through double doors. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Clean/dirty separation: load soiled trolleys on one side, unload disinfected loads on the other — the pass-through layout keeps your CSSD flow one-way.
Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Touch control (7-inch display (dirty side) + 3.5-inch display (clean side)) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
2 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Weight
460 kg

Dimensions (W×D×H)
W 1000 x D 900 x H 1900 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15AD-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

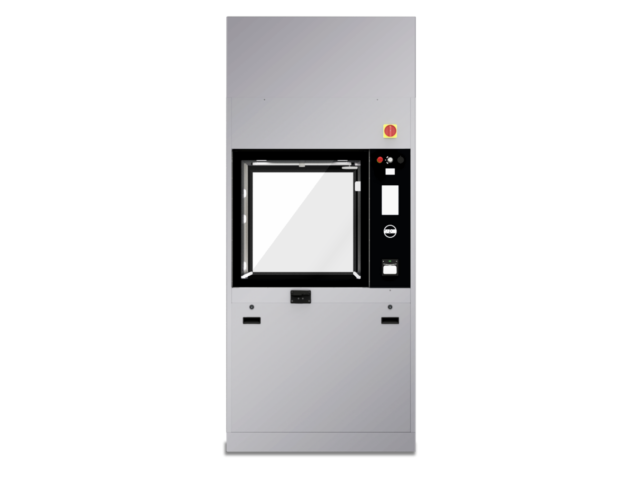

The AWD655-15AD-SC-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a pass-through double doors, plus an integrated steam boiler that cuts energy costs and element wear. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Clean/dirty separation: load soiled trolleys on one side, unload disinfected loads on the other — the pass-through layout keeps your CSSD flow one-way.
Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Touch control (7-inch display (dirty side) + 3.5-inch display (clean side)) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
2 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Integrated boilers
1

Weight
480 kg

Dimensions (W×D×H)
W 1000 x D 900 x H 2300 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15AD-SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

The AWD655-15AD-2SC-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a pass-through double doors, plus twin integrated boilers (deionised water and hot water). A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Clean/dirty separation: load soiled trolleys on one side, unload disinfected loads on the other — the pass-through layout keeps your CSSD flow one-way.
Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Touch control (7-inch display (dirty side) + 3.5-inch display (clean side)) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
2 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Integrated boilers
2

Weight
500 kg

Dimensions (W×D×H)
W 1000 x D 900 x H 2300 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15AD-2SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

The AWD655-15AD-3SC-MED is a high-capacity freestanding instrument washer-disinfector for high-throughput central sterilisation departments with a 430 l chamber, fitted with a pass-through double doors, plus three integrated boilers for hot water, deionised water and steam. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Clean/dirty separation: load soiled trolleys on one side, unload disinfected loads on the other — the pass-through layout keeps your CSSD flow one-way.
Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 18 DIN per cycle: up to 18 din DIN baskets and a 430 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Touch control (7-inch display (dirty side) + 3.5-inch display (clean side)) with programmable cycles and cycle documentation.
Auto-load ready: runs with manual transport trolleys today, upgrades to automatic loading tomorrow.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
430 L

Load capacity
Up to 18 DIN racks

Doors
2 × automatic sliding double tempered glass

Drying
Integrated forced-air drying

Integrated boilers
3

Weight
520 kg

Dimensions (W×D×H)
W 1000 x D 900 x H 2300 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-15AD-3SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.
