The AWD655-8X-MED is a built-in instrument washer-disinfector for surgical wards and small sterilisation departments with a 165 l chamber, fitted with a manual stainless steel door. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 8 DIN per cycle: up to 8 din DIN trays and a 165 l chamber keep pace with theatre lists.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
165 L

Load capacity
Up to 8 DIN trays

Doors
1 × manual stainless steel

Drying
Integrated forced-air drying

Weight
100 kg

Dimensions (W×D×H)
W 600 x D 650 x H 845 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-8X-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

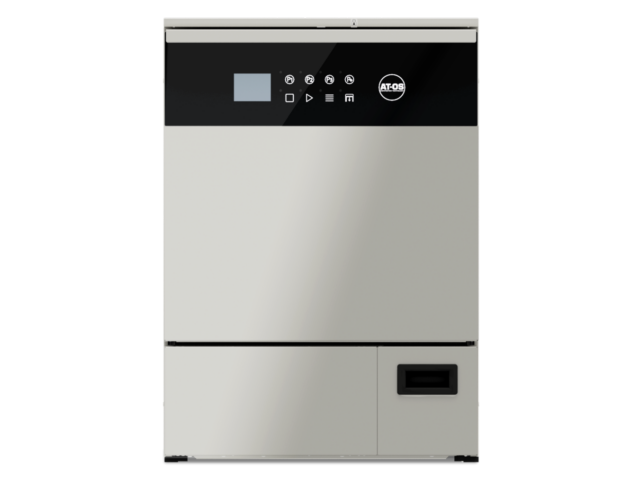

The AWD655-8XE-MED is a built-in instrument washer-disinfector for surgical wards and small sterilisation departments with a 165 l chamber, fitted with a manual stainless steel door. Loads leave the chamber drain-free; pair the machine with a drying cabinet where your workflow needs fully dried sets. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Efficient wash performance: spray washing with external water heating elements that extend system life.
Up to 8 DIN per cycle: up to 8 din DIN trays and a 165 l chamber keep pace with theatre lists.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
165 L

Load capacity
Up to 8 DIN trays

Doors
1 × manual stainless steel

Drying
No (add drying cabinet)

Weight
100 kg

Dimensions (W×D×H)
W 600 x D 650 x H 845 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-8XE-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

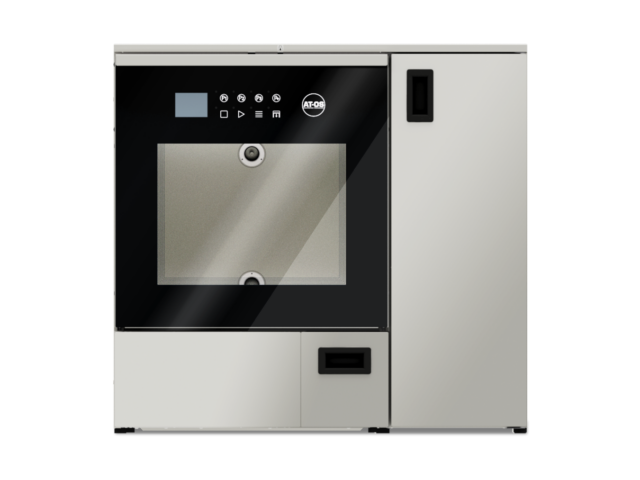

The AWD655-8L-MED is a wide under-counter instrument washer-disinfector for surgical wards and small sterilisation departments with a 165 l chamber, fitted with a manual double-tempered glass door. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 8 DIN per cycle: up to 8 din DIN trays and a 165 l chamber keep pace with theatre lists.
Built-in detergent canisters: liquid detergent dosing from a side compartment — no manual dosing.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
165 L

Load capacity
Up to 8 DIN trays

Doors
1 × manual double tempered glass

Drying
Integrated forced-air drying

Weight
115 kg

Dimensions (W×D×H)
W 900 x D 650 x H 845 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-8L-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

The AWD655-8XL-MED is a wide under-counter instrument washer-disinfector for surgical wards and small sterilisation departments with a 165 l chamber, fitted with a manual stainless steel door. A filtered, electrically heated forced-air system dries the chamber and flushes hollow instruments, so loads come out ready for wrapping and sterilising. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Forced-air drying: filtered, heated air is forced through the chamber and inside hollow instruments, so sets come out dry and ready to wrap.
Up to 8 DIN per cycle: up to 8 din DIN trays and a 165 l chamber keep pace with theatre lists.
Built-in detergent canisters: liquid detergent dosing from a side compartment — no manual dosing.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
165 L

Load capacity
Up to 8 DIN trays

Doors
1 × manual stainless steel

Drying
Integrated forced-air drying

Weight
115 kg

Dimensions (W×D×H)
W 900 x D 650 x H 845 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-8XL-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

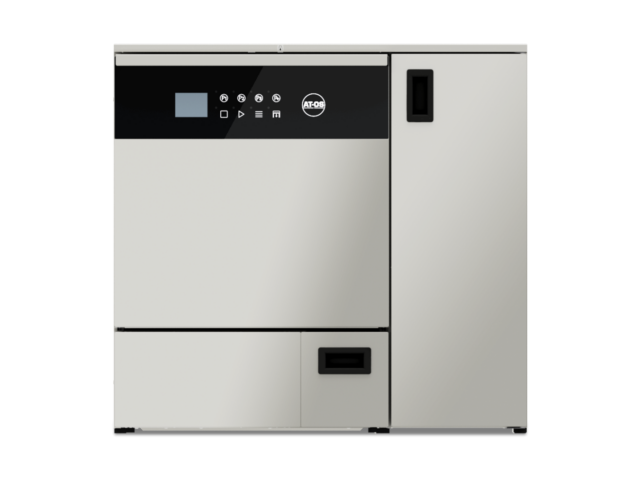

The AWD655-8XEL-MED is a wide under-counter instrument washer-disinfector for surgical wards and small sterilisation departments with a 165 l chamber, fitted with a manual stainless steel door. Loads leave the chamber drain-free; pair the machine with a drying cabinet where your workflow needs fully dried sets. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Efficient wash performance: spray washing with external water heating elements that extend system life.
Up to 8 DIN per cycle: up to 8 din DIN trays and a 165 l chamber keep pace with theatre lists.
Built-in detergent canisters: liquid detergent dosing from a side compartment — no manual dosing.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
165 L

Load capacity
Up to 8 DIN trays

Doors
1 × manual stainless steel

Drying
No (add drying cabinet)

Weight
115 kg

Dimensions (W×D×H)
W 900 x D 650 x H 845 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-8XEL-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.

The AWD655-8L-SC-MED is a wide under-counter instrument washer-disinfector for surgical wards and small sterilisation departments with a 165 l chamber, fitted with a manual double-tempered glass door, plus an integrated steam boiler that cuts energy costs and element wear. Loads leave the chamber drain-free; pair the machine with a drying cabinet where your workflow needs fully dried sets. Washing and thermal disinfection follow EN ISO 15883, with a full printable record of every cycle for your validation file.

Efficient wash performance: spray washing with external water heating elements that extend system life.
Up to 8 DIN per cycle: up to 8 din DIN trays and a 165 l chamber keep pace with theatre lists.
Integrated boiler(s): on-board steam/hot water generation lowers running costs and reduces dependency on building services.
Built-in detergent canisters: liquid detergent dosing from a side compartment — no manual dosing.
Validated disinfection: A0-value thermal disinfection with full ISO 15883 cycle documentation on every run.

Technical specifications

Chamber capacity
165 L

Load capacity
Up to 8 DIN trays

Doors
1 × manual double tempered glass

Drying
No (add drying cabinet)

Integrated boilers
1

Weight
115 kg

Dimensions (W×D×H)
W 900 x D 650 x H 845 mm

Compliance
EN ISO 15883 thermal disinfection with cycle documentation

Manufacture
Engineered and built in Italy by AT-OS S.r.l.

Trolleys, baskets and accessories
Every AWD655 is configured around what you actually wash. Typical loading equipment:

Instrument trays and mesh baskets in standard DIN 1/1 and half formats
Specialist baskets for microsurgical, ophthalmic and dental instruments with silicone holders
Hollow-instrument irrigation connectors for lumened devices (tubing, cannulae, handpieces)
Washer trolleys and loading rails matched to the chamber height; transport trolleys for the 10 and 15 series
Detergent and neutraliser dosing from AT-OS's healthcare detergent range

We'll spec the exact trolley and basket mix with you at quotation, and stock local spares for everything we install.
Download the AWD655-8L-SC-MED technical datasheet (PDF) or ask us for the full AT-OS washer-disinfector brochure.
Request pricing and lead times — send a quote request and our consultant for your region replies within one business day. Installation, commissioning, operator training and 24-hour standby service nationwide are handled by our own technicians.
The AWD655 series is designed and manufactured in Italy by AT-OS S.r.l., an international leader in washer-disinfection. Rob Dyer Surgical supplies and services the AT-OS range across South Africa, with offices in Cape Town and Kyalami, Midrand.
